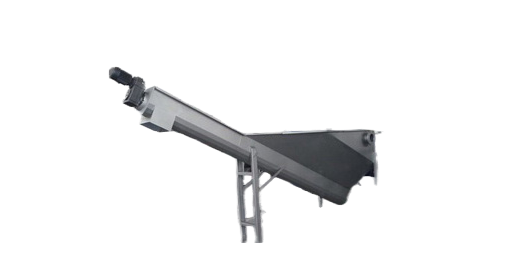

LSSF spiral sand-water separator

1. Working Principle

The LSSF separator operates by allowing sand-laden wastewater to flow into a sedimentation tank. The heavier sand particles settle to the bottom of the tank due to gravity, while the lighter water is discharged. A spiral screw mechanism then lifts the settled sand out of the tank for further disposal or processing, effectively separating the sand from the water.

2. Structural Features

• Sedimentation Tank: Designed to allow sand and grit to settle naturally by gravity.

• Spiral Screw: A robust, corrosion-resistant screw mechanism lifts the settled sand, dewatering it during the process.

• Drive System: Powers the screw with efficient and reliable performance, typically involving a motor and gear assembly.

• Discharge Outlet: Separately ejects the dewatered sand and cleaned water, ensuring efficient separation.

• Corrosion-Resistant Construction: Made of materials like stainless steel to withstand harsh wastewater conditions.

3. Applications

• Municipal Wastewater Treatment: Separates sand and grit from sewage to protect pumps and other downstream equipment.

• Industrial Wastewater Treatment: Removes heavy particles from effluents in industries like food processing, chemical manufacturing, and mining.

• Stormwater Management: Handles sand and debris carried by rainwater runoff.

• Environmental Protection Projects: Used in river cleaning and dredging applications to separate sediment from water.

4. Advantages

• Efficient Separation: Achieves high separation rates for sand and heavy particles with minimal water loss.

• Low Maintenance: The simple yet robust design reduces operational and maintenance requirements.

• Energy-Efficient Operation: Designed for low energy consumption while maintaining high performance.

• Compact Design: Saves space and is easy to install in various water treatment setups.

• Durable and Reliable: Resistant to wear and corrosion, ensuring long-term operation in harsh environments.

5. Precautions

• Regular Inspections: Periodically check the spiral screw, drive system, and sedimentation tank for wear or blockages.

• Avoid Overloading: Prevent excessive sand or grit input to avoid overstraining the screw mechanism.

• Correct Installation: Ensure proper leveling and alignment of the separator for optimal performance.

• Lubrication and Maintenance: Regularly lubricate moving parts and clean the system to maintain efficiency.

• Safety Measures: Adhere to operational safety protocols, especially during maintenance or cleaning activities.
