ZBGN peripheral drive bridge-type sludge scraper

1. Working Principle

The ZBGN sludge scraper is installed in circular sedimentation tanks. The peripheral drive system, located at the tank’s outer edge, rotates the scraper arm slowly along the tank wall. The scraper blades on the arm push the settled sludge at the bottom toward the central sludge collection pit, from which the sludge is discharged through a sludge outlet pipe. Floating scum is removed by an optional scum skimmer, maintaining a clean water surface.

2. Structural Features

• Peripheral Drive System: Powered by a motor and gearbox, ensuring stable operation with high torque for continuous performance.

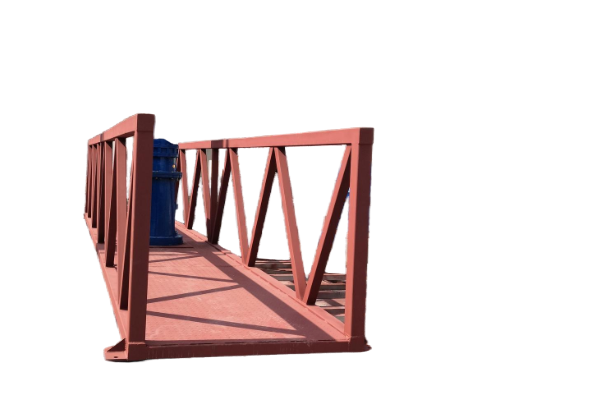

• Bridge Structure: A lightweight yet sturdy bridge spans the tank, supporting the scraper arm and drive components.

• Scraper Arm and Blades: Effectively scrape and direct sludge toward the central collection pit, preventing sediment build-up.

• Scum Skimmer: An optional device for removing floating scum to improve water quality.

• Corrosion-Resistant Materials: Constructed from stainless steel, carbon steel with anti-corrosion coating, or fiberglass for durability in harsh environments.

• Control System: Can include automated controls for start/stop functions and operational monitoring.

3. Applications

• Municipal Wastewater Treatment: Ideal for sludge removal in primary and secondary sedimentation tanks.

• Industrial Wastewater Treatment: Suitable for sedimentation tanks in industries such as chemical, steel, and pharmaceutical production.

• Water Supply Purification: Used in water treatment plants to remove suspended solids and sludge.

• General Sedimentation Processes: Applicable in any process requiring efficient sludge collection and discharge.

4. Advantages

• High Sludge Removal Efficiency: The scraper arm and blades are designed to thoroughly remove settled sludge from the tank bottom.

• Stable Operation: The peripheral drive system ensures reliable and smooth performance, even in large tanks.

• Lightweight Structure: Optimized bridge design provides high strength with reduced weight, minimizing structural strain.

• Versatile Adaptability: Compatible with various tank sizes and diameters, and easy to install and maintain.

• Energy Efficient: Low power consumption and operational costs.

• Durable and Long-Lasting: High resistance to corrosion and wear for extended service life.

5. Precautions

• Installation and Alignment: Ensure proper leveling and alignment during installation to avoid operational imbalances.

• Regular Maintenance: Inspect the drive system, scraper arms, and blades for wear and damage, replacing parts as necessary.

• Unclogging: Keep sludge discharge outlets and scum skimmers clear of blockages.

• Lubrication: Regularly lubricate moving parts to maintain smooth operation.

• Safety Compliance: Follow operational safety protocols and avoid unauthorized access to the tank during operation.
