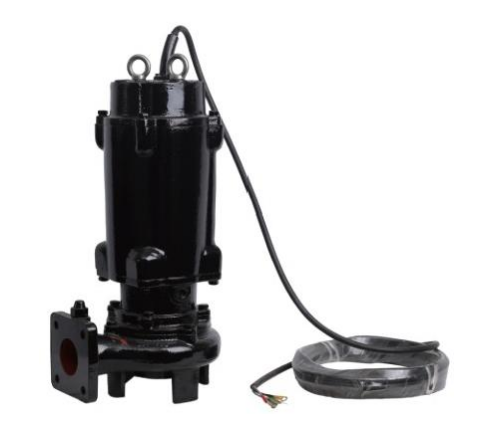

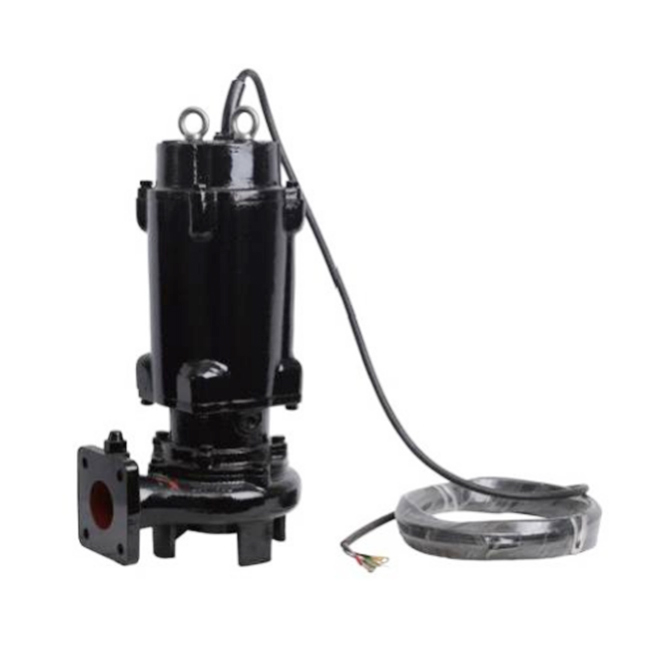

CSB Submersible Solid Handling Pump

Application

Wastewater lift station.

Municipal wastewater treatment plant.

Building wastewater treatment system.

Agricultural and livestock wastewater treatment system Hospital,school,community,etc.wastewater treatment system.

Food,paper,mining,textile,leather,chemical industry,

etc.wastewater treatment system

Water purification system.

Features

Motor

Squirrel-cage,induction motors are F class insulation,motor protection grade is IP68.

Non-clog impeller

Well statically &dynamically balanced Non-Clog impeller is designed to allow sizable spherical solids to pass the flow passage easily without clogging.It adopts rigorous technics so that vibration and noise can be farthest reduced.

Mechanical seal

The mechanical seals protect the motor from contacting the pumping liquids.Two seals are in series with each other and individually work to provide the motor with a dual protection.

Auto-setter(options)

To allow pump for easy installation,maintenance &reparation, as it is no need to empty the tank first.

Leakage detector

Built-in leakage detector in the oil chamber can detect leakage from the damage of the mechanical seal.(Less than 15kW options,No less than 15kWstandard).

Built-in leakage deteriorating the wiring box and motor cavity of large power pumps can check if a leakage in it.The leakage detector offers pump and automatic protection(Not standard,No less than 132kW options).

Heat-protector

Built-in heat protector in motor,can prevent the motor from Burning out,overload &overheating.(Lessthan15kWoptions,No less than 15kW standard).

Built-in heat protector in bearing,when the bearing is abnormal and the temperature rises to disconnecting temperature, the protector automatically cut off power supply to protect the bearing.(Not standard,no less than 18.5 options).

Cooling house (options)

Pumps make use of inner pressure of pump cavity to make liquid Continuously entering in space between cooling house and motor outer,to take away the heat of the motor.to make sure the regular work of the pump in low water level (No less than 18.5kWoptions).
