POLYHEDRAL HOLLOW SPHERE

High gas velocity, many blades, low resistance

many blades and small resistance

High temperature, corrosion resistance and good surface water performance

The specific surface area is large, can fully solve the gas-liquid exchange

The specific surface area is large, the gas-liquid exchange can be fully solved.

The gas-liquid exchange can be fully solved

Product Introduction

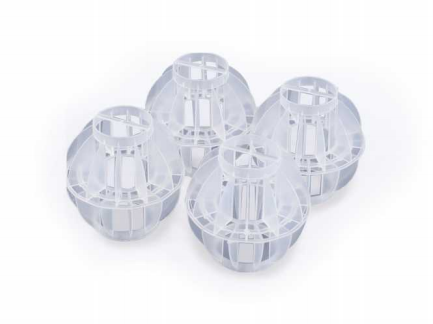

Multi-surface hollow ball is made of polypropylene (PP). Mainly used in cooling towers, purification towers in the removal of oxygen, carbon dioxide and other gases. The appearance is spherical, the main specifications are

Φ25MM, Φ38MM, Φ50MM, Φ76MM.

It is made of polypropylene (PP) plastic, two hemispheres are combined into one sphere, each hemisphere has 8-12 semi-fan-shaped blades according to the design needs, and the fan-shaped blades of two hemispheres are staggered each other.

The fan-shaped blades of two hemispheres are staggered each other. The filler is characterized by large specific surface area and high void ratio. However, due to the high number of blades, there is a masking effect between each other, which is not conducive to liquid distribution and wetting.

Liquid is mostly gathered in the hollow column of the sphere, hindering the smooth flow of gas, so the resistance is larger. This kind of packing is mostly used in waste gas treatment and water treatment projects.

SCOPE OF APPLICATION

It is widely used in environmental protection equipments such as oxygen removal and carbon dioxide removal.
