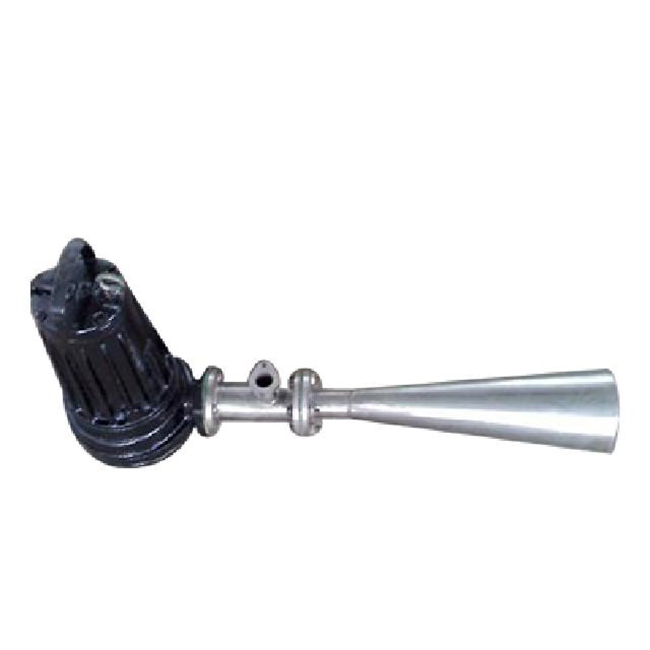

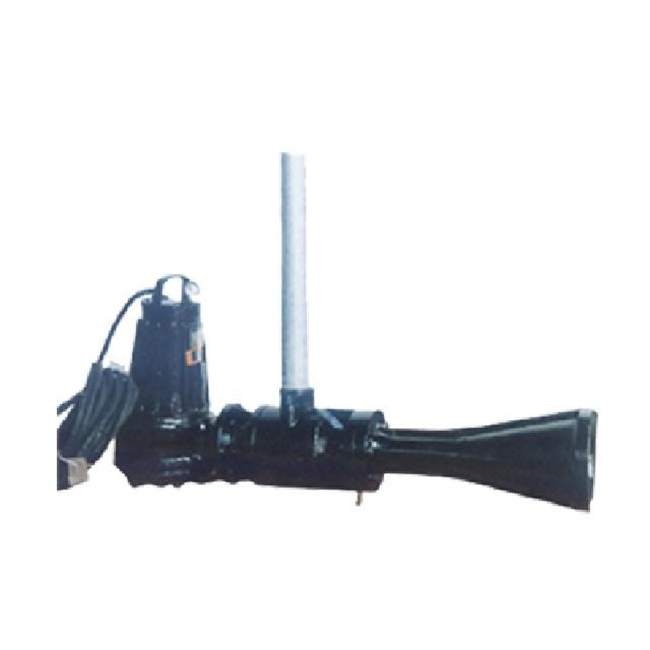

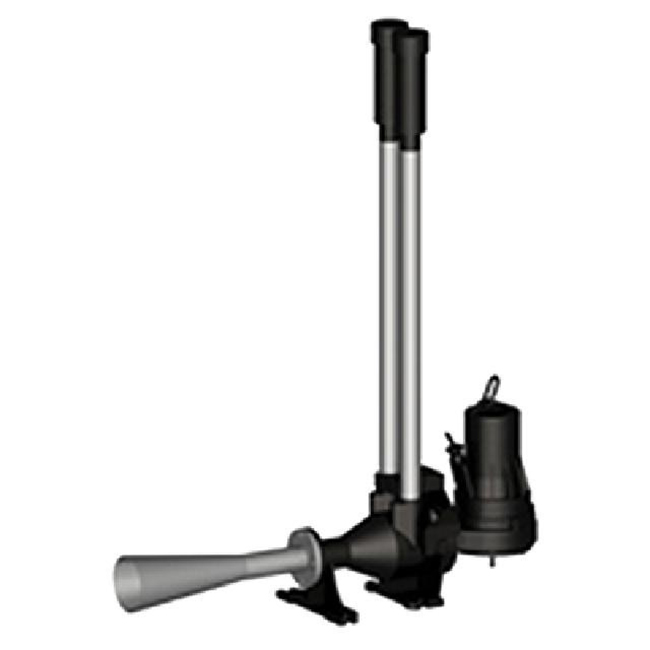

Jet Aerator

Principle and use

Through the submersible pump generated by the water flow through the nozzle to form a high-speed water flow, the formation of negative pressure around the nozzle suction, into the air, through the mixing chamber and water mixing, in the trumpet-shaped diffusion tube to produce a mixture of water and gas flow, high-speed injection, entrained with a lot of bubbles in the water in a larger area and the depth of the degree of vortex mixing, to complete the service and the axial power of the bong is not with the submerged depth of the change, the amount of air can be adjusted. Because of this, the jet blaster can be applied in the pool with large changes in water level.

Features

The aerator consists of a submersible electric pump and a jet pump, thus making the water stirring and oxygenation at the same time, which can obtain a high oxygen absorption rate, but also has the advantage of non-clogging impeller.

Strong unidirectional liquid flow, resulting in effective convection circulation, and the motor load with the water level changes are very small, simple installation.

Applicable working conditions

QSB type deep-water self-priming submersible jet aerator can operate normally and continuously under the following conditions.

1. The highest medium temperature does not exceed 40°C

2. PH value of the medium in 5-9.

3. Medium density does not exceed 1150kg/m.
