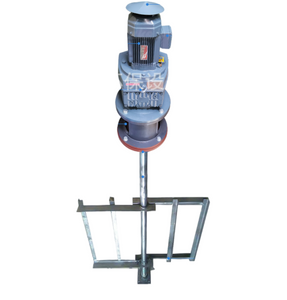

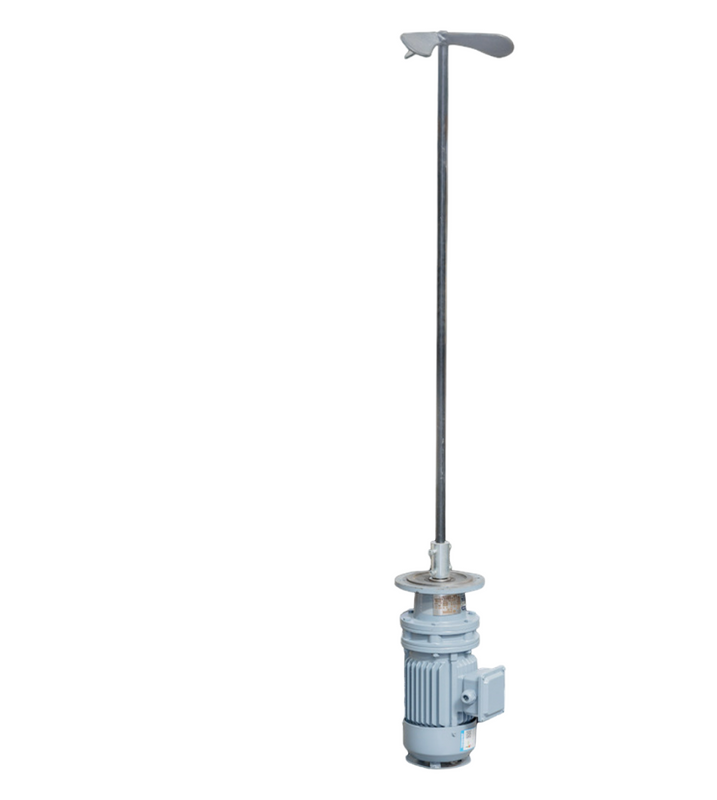

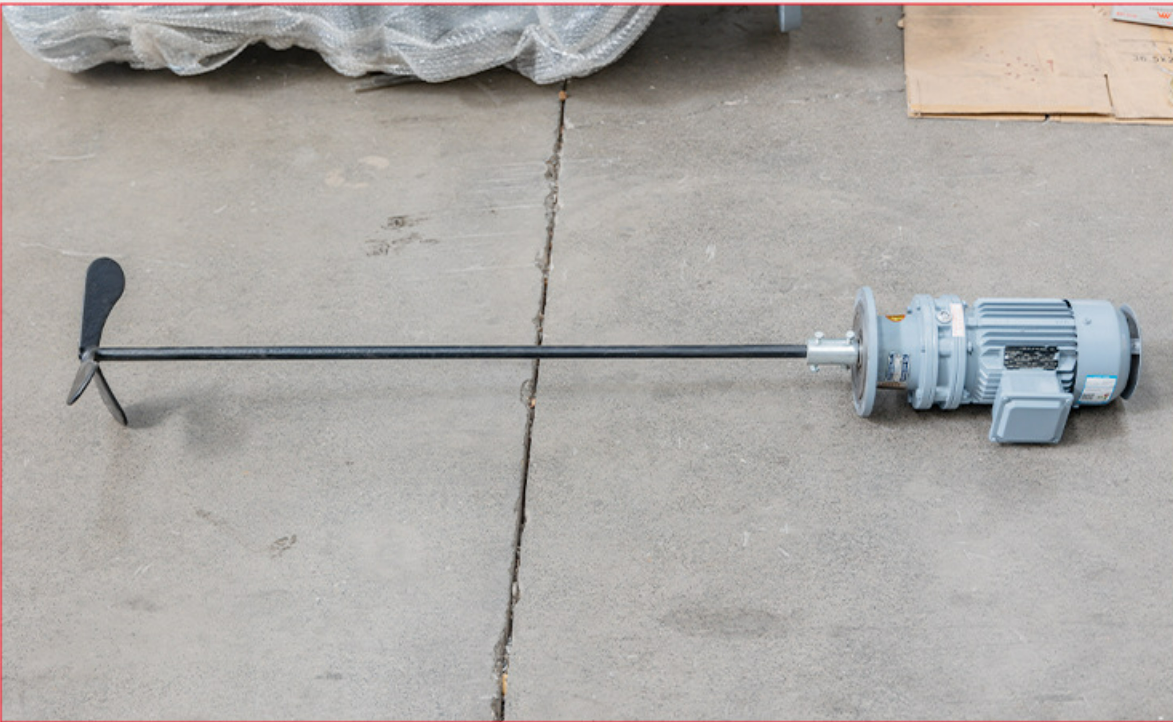

JBJ Paddle Mixer

1. Working Principle

The JBJ Paddle Mixer employs a motor-driven shaft equipped with paddle blades that rotate to create a flow pattern within the mixing vessel. These paddles ensure thorough blending by generating a combination of convection, shear, and tumbling motions, promoting uniform distribution of materials.

2. Structural Features

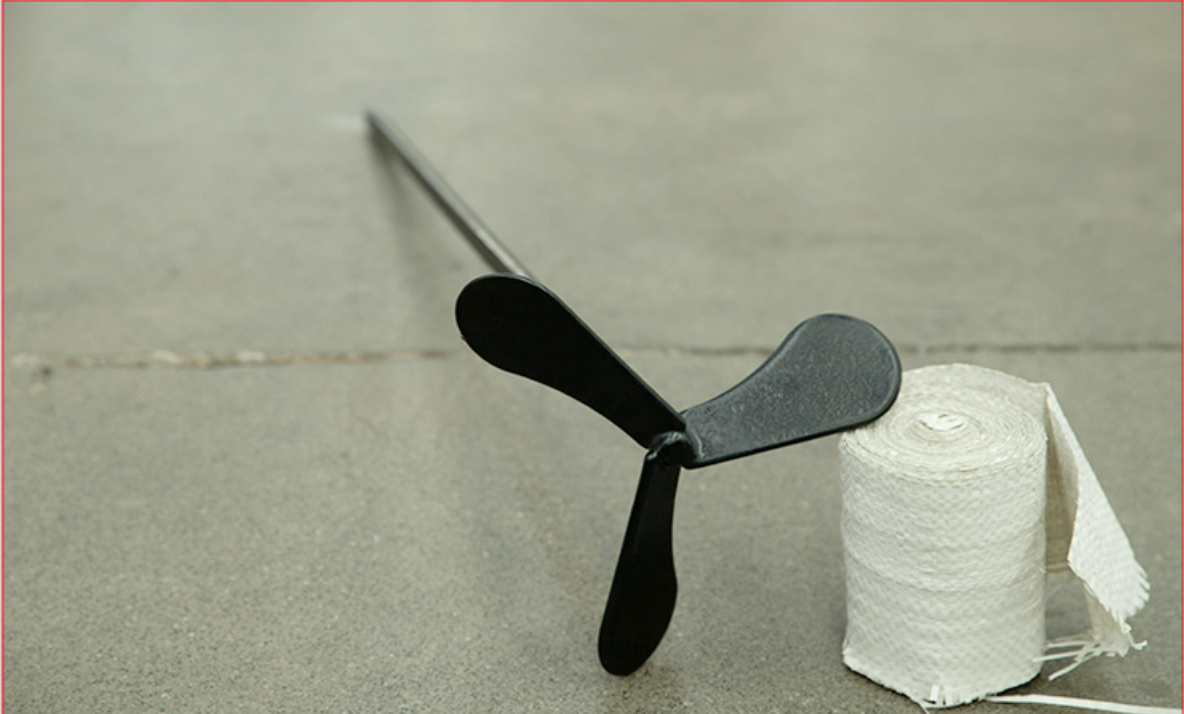

• Paddle Blades: Curved or straight blades positioned to optimize the mixing process by lifting and folding the material.

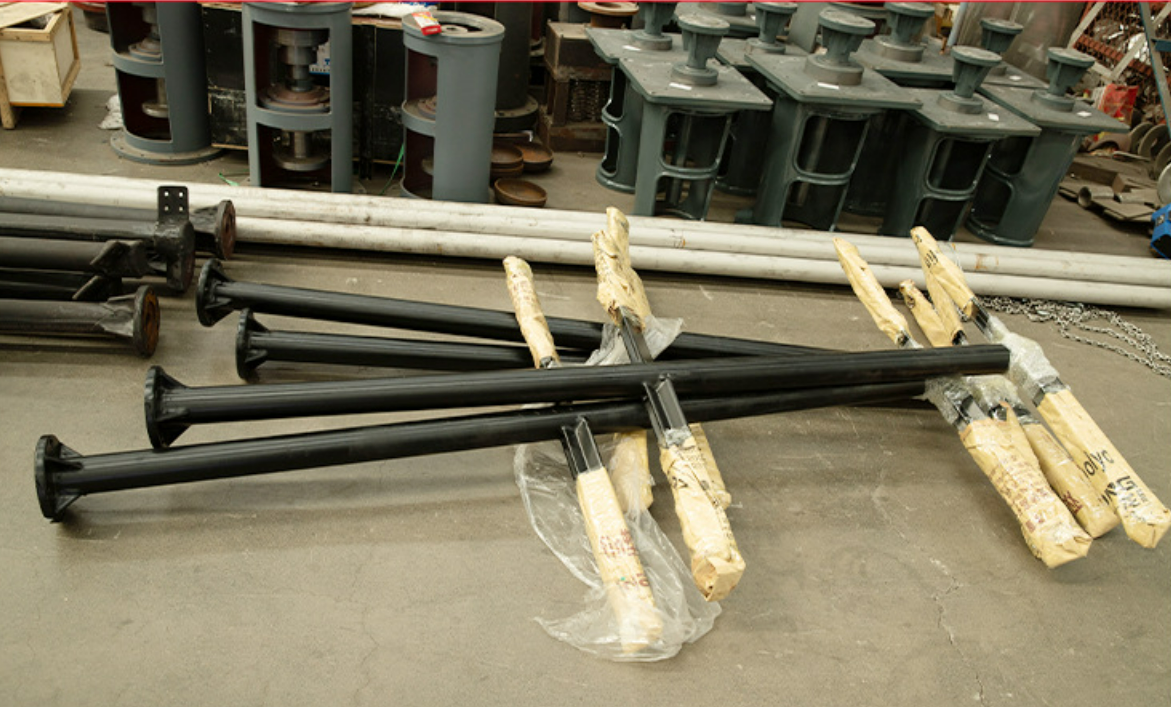

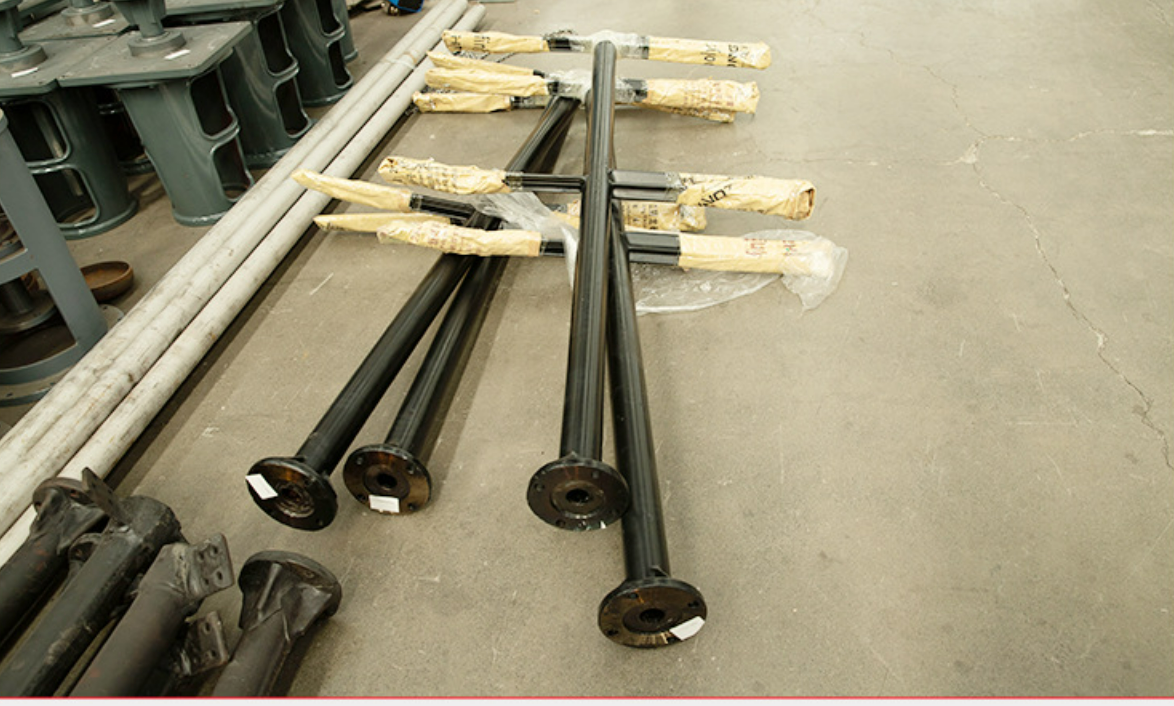

• Mixing Shaft: Strong and durable, transmitting the motor's power to the blades.

• Drive System: Typically consists of a motor coupled with a gearbox to provide the required torque and speed.

• Sealing Mechanism: Options include mechanical seals or packing seals, ensuring leak-proof and efficient operation.

• Material Options: The mixer can be made from stainless steel, carbon steel, or other materials, depending on the application requirements.

3. Applications

• Food Industry: Mixing flour, spices, dry ingredients, or semi-liquid products like dough and batter.

• Chemical Industry: Blending powdered chemicals, granules, and viscous pastes.

• Pharmaceutical Industry: Preparing powdered or granular medicines.

• Agricultural Industry: Mixing animal feed, fertilizers, or soil conditioners.

• Construction Industry: Blending dry mortars, cement, or other construction materials.

4. Advantages

• Uniform Mixing: The paddle design ensures even blending of materials with varying properties.

• High Efficiency: Provides effective mixing with reduced energy consumption.

• Customizable Design: Adaptable to specific process requirements, including varying capacities, materials, and configurations.

• Ease of Maintenance: Simple structure and robust construction minimize downtime and maintenance costs.

5. Precautions

• Ensure proper alignment and lubrication of the drive system to prevent wear and tear.

• Select the appropriate paddle blade design based on material type and mixing goals.

• Perform regular inspections and cleaning to maintain optimal performance.

• Avoid overloading the mixer, as it may impact efficiency and cause damage.

For detailed specifications or custom configurations, refer to the manufacturer’s product manual or consult with the supplier.
