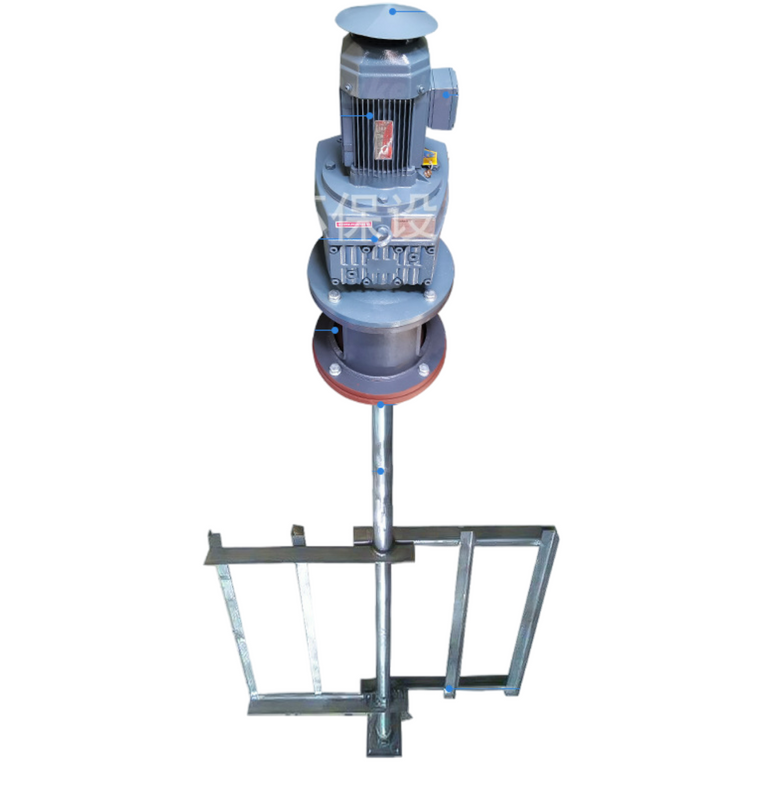

JBK Frame Mixer

1. Working Principle

The JBK frame-typemixer operates by using a motor-driven shaft to rotate frame-shaped blades inside a vessel. This creates a stable flow pattern, promoting convection, shearing, and dispersion, ensuring even mixing while minimizing material sedimentation at the bottom or walls of the container.

2. Structural Features

• Frame-Shaped Blades: The frame design provides a large surface area, delivering sufficient shear force for mixing high-viscosity fluids.

• Agitator Shaft: Connects the motor to the blades, transferring power effectively.

• Drive System: Typically comprises a motor and a gearbox, offering low-speed operation and high torque.

• Sealing Mechanism: Options include mechanical seals or packing seals to ensure leak-proof operation, especially in closed systems.

3. Application Areas

• Chemical Industry: Mixing high-viscosity materials such as paints, adhesives, and resins.

• Food Industry: Blending thick products like syrups, sauces, and jams.

• Pharmaceutical Industry: Preparing liquid or semi-solid formulations like ointments and suspensions.

• Building Materials Industry: Mixing materials such as cement slurry and putty.

4. Advantages

• High Efficiency: The large blade surface ensures effective mixing, reducing energy consumption.

• Versatility: Capable of handling high-viscosity materials and those containing solid particles.

• Reliable Performance: Provides stable operation and is suitable for extended continuous use.

5. Precautions

• Regularly inspect bearings and seals to prevent leaks or wear.

• Select appropriate blade designs and operating speeds based on material properties.

• Ensure the mixing vessel is free from debris or obstructions before starting to avoid equipment damage.

For more specific technical details, including model specifications or maintenance guidelines, consult the manufacturer's technical documentation or contact the supplier.
