WLSY
Lan ling
Product Description
Structure and working process

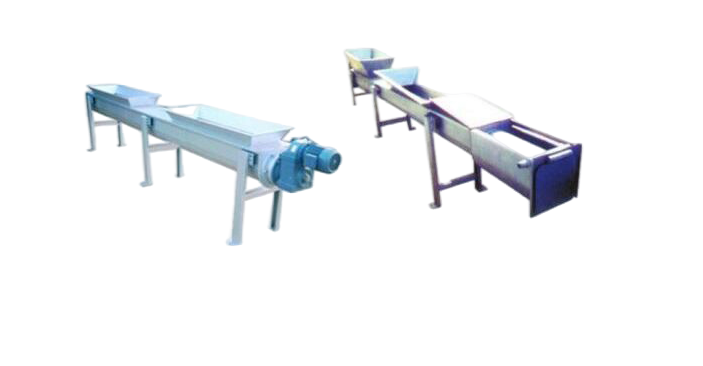

WLSY type shaftless screw conveying and pressing machine is composed of driving device, shaftless screw, U-shaped trough, bracket, lining plate, squeezing section and drainage pipe. The conveying process is carried out in a U-shaped trough with a cover plate, the floating materials in the water fished out by the grating decontaminator are accessed by the inlet, and the shaftless screw placed in the U-shaped plant is driven by the driving device to rotate. In the spiral drive slag forward to reach the extrusion section of the dewatering from the outlet; extrusion of the water flow through the drain and introduced into the grating canal.
Structural features:
1. Simple structure, easy to use, easy to maintain;
2. In addition to the open inlet, the rest can be closed with a cover, the material will not spill. Reduce air pollution;
3. Designed and manufactured into an integrated equipment, which can both convey the slag and squeeze the dewatering.
