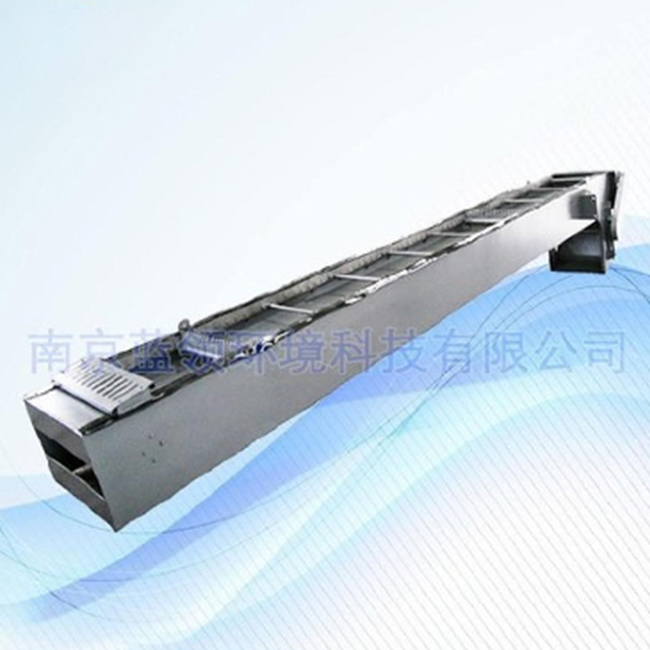

GSHZ Type Rotary Grating Dewatering Machine

Application

GSHZ rotary grating decontamination (also known as ‘solid-liquid separator’), widely used in municipal wastewater treatment plants, water treatment plants, pumping stations, power plants inlet, automatic interception and removal of floating objects in the water to ensure the normal operation of the next process; can also be used as textile, printing and dyeing, slaughtering, tanning, paper making, sugar, brewing, food processing in the solid-liquid separation. It can also be used for solid-liquid separation in textile, printing and dyeing, slaughtering, tanning, paper making, sugar, brewing, food processing.

Main features

Compact structure, simple electrical control, easy to achieve automation; excellent corrosion resistance, low energy consumption, low noise;continuous decontamination action, clean discharge, high separation efficiency.

Working Principle: The equipment is made of ABS engineering plastic.

The equipment is made of ABS engineering plastics, nylon or stainless steel made of special shaped rake teeth, according to a certain arrangement of the order of the rake teeth installed on the shaft to form a closed chain of teeth, the lower part of which is installed in the water inlet canal water. When the transmission system drives the sprocket for uniform speed directional rotation, the whole chain of rake teeth will be from top to bottom movement, and carry solid debris from the liquid separation out, the fluid through the rake teeth gap flow out, the whole working condition continuously.

Due to the special structure and shape of the rake teeth, so that the rake teeth chain to carry debris to the upper end of the reverse movement, before and after the rake between the relative self-cleaning movement, prompting debris to rely on gravity to fall off the back of the equipment can be set up to rotate the dirt brush, further in addition to the stagnation in the rake teeth of the dirt, such as the need for ordering to be specified.
